ULTECHNOVO nebulizer platelets

If the fogging performance decreases, it can be restored by replacing the small plate. To do this, loosen the four screws on the air inlet with the enclosed TX10 wrench and remove the plug. The new plate is then inserted in the same way as the previous one.

This product is a spare part that is only used to repair an "Equilator Set" that has already been purchased. The product will not function without the basic device.

Replacement is only possible for nebulizers purchased after 01.02.2025.

Note: Replacement is at your own risk. No liability can be accepted for any resulting damage.

Product information

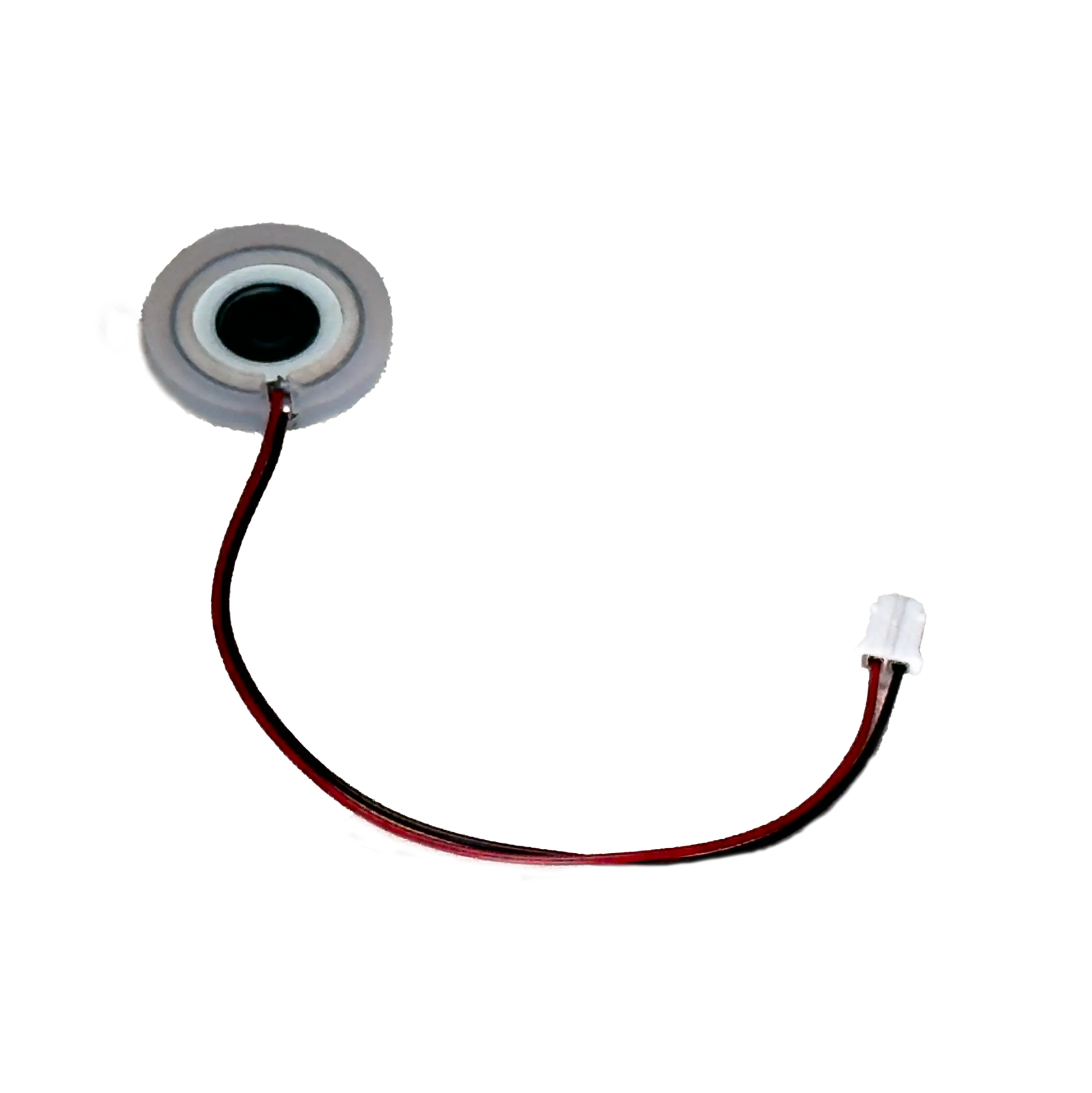

The nebulizer plate (piezo mesh) is the heart of the inhaler. It is used to generate the aerosol.

Scope of delivery

• 1 x nebulizer plate

Dimensions

• 20 mm diameter

Technical data

Nebulizer

• Membrane hole diameter: approx. 5 µm
• Nebulization capacity: approx. 0.5 - 1.8 ml/min (8 - 25 min nebulization time with 10 ml 0.9% NaCl solution)
• Voltage: 5V
• Frequency: 108 kHz
• Durability: Venebler is designed for approx. 90 applications of 10 ml at NaCl 0.9%

General information

• Please do not expose to temperatures below 4 °C and above 50 °C

Material: Stainless steel

• Stainless steel
• silicone

Care

• Store in a dry place

Statutory warranty

The statutory warranty period of 24 months applies to this product. Excluded from the warranty are consumption and wear and tear damage as well as damage caused by improper use, personal negligence, falling or other mechanical influences. Damage that occurs in connection with an independent replacement of the nebulizer plate is also not covered by the warranty.

WEEE: DE49279058
